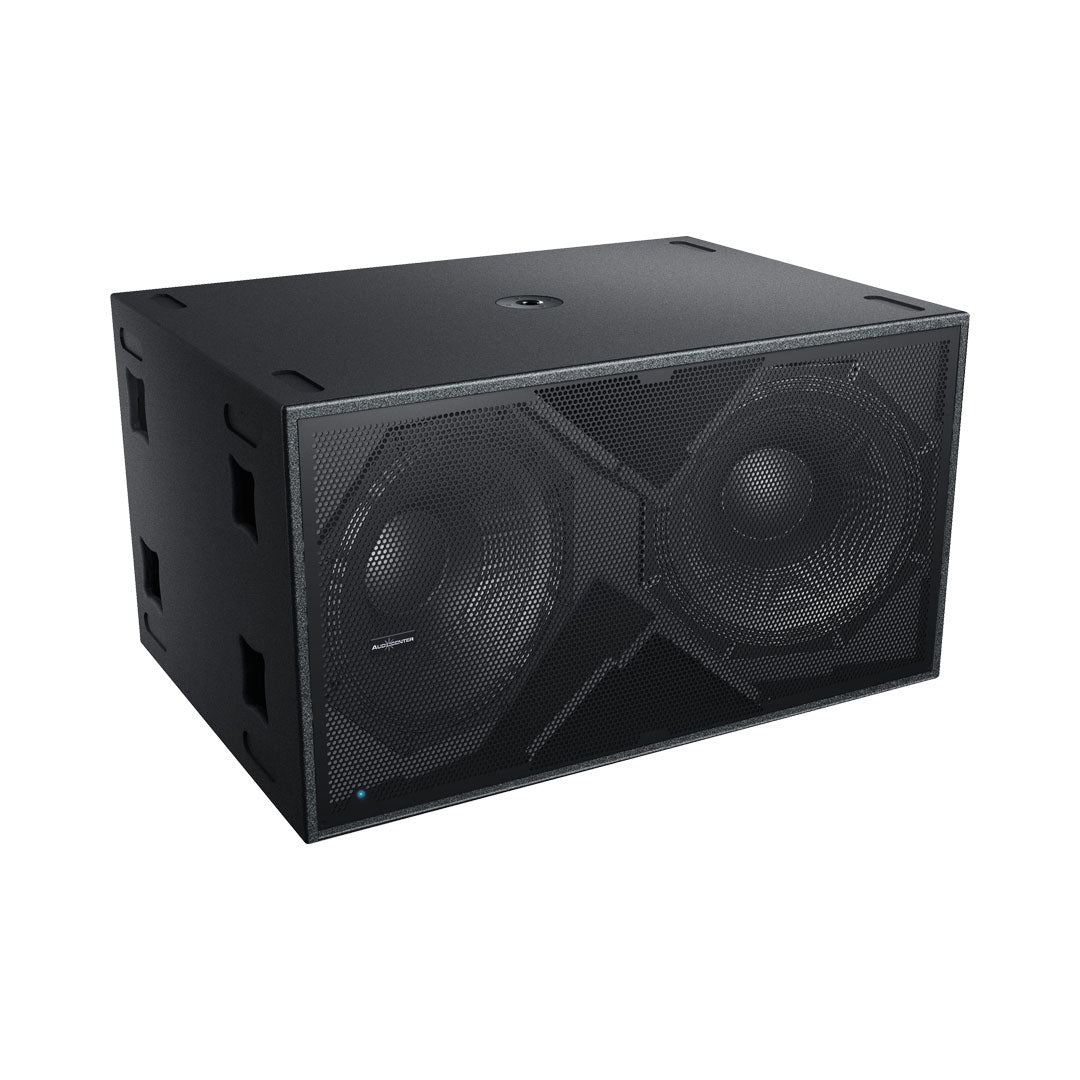

K-LA218-DSP, an active DSP-controlled Dual 18” subwoofer, is designed to meet the high requirements of touring performance, rental and fixed installation.
The LF drivers of K-LA218-DSP are two customized 18”drivers (4”voice coil).
User Selectable 3 low-pass filters (80Hz,100Hz,120Hz) in K-LA218-DSP are available for the users to choose according to different environments and music styles.
K-LA218-DSP is a perfect match for all Audiocenter full range speakers, extending band width of frequency response and delivering powerful, impressive, punchy bass sound.
Features
● Hi end digital controller on board(DSP) with 96KHz signal sampling frequency, 56bit precision
● Standby mode automatically if without signal input for 15mins
● Class D amplifier
● Advanced cooling system in the driver
● Rock solid humidity free birch plywood CNC made cabinet
● Comprehensive accessories suitable for different applications
Specifications
Type
Active DSP-controlled Compact Subwoofer
Frequency Response(-6dB anechoic chamber)
32Hz-400Hz
Muximum Calculated SPL/1M(Continuous/Peak)
135dB/141dB
LF Driver
Customized driver, 4” voice coil
AMPLIFIER
Amplifier Circuitry
Class D
Power(RMS standards)
2800W
Frequency Response(1W 8Ω 2ch)
20Hz-6KHz(±0.5dB)
Intermodulation Distortion
<0.05%
Total Harmonic Distortion
<0.05%
Protection
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, under voltage protection
Cooling System
Cooling with fans
DSP
Processor
96KHz signal sampling frequency, 56bit precision
Presets
80Hz, 100Hz, 120Hz
Crossover
Controlled by DSP
Output/Input
Signal Input
1× female XLR
Signal Output
1× male XLR
Power Input
Power connector
Working Voltage
85V~135V or 170V~270V 50/60Hz
Cabinet
Cabinet Material
Russian birch plywood CNC made
Cabinet Color
Black is standard and default color.Consult with sales team for the other customized colors
Dimension(W×H×D)
1080×595×760mm
Net Weight
101.0Kg
Configuration
● K-LA-DSP, K-LA Series full range loudspeaker
