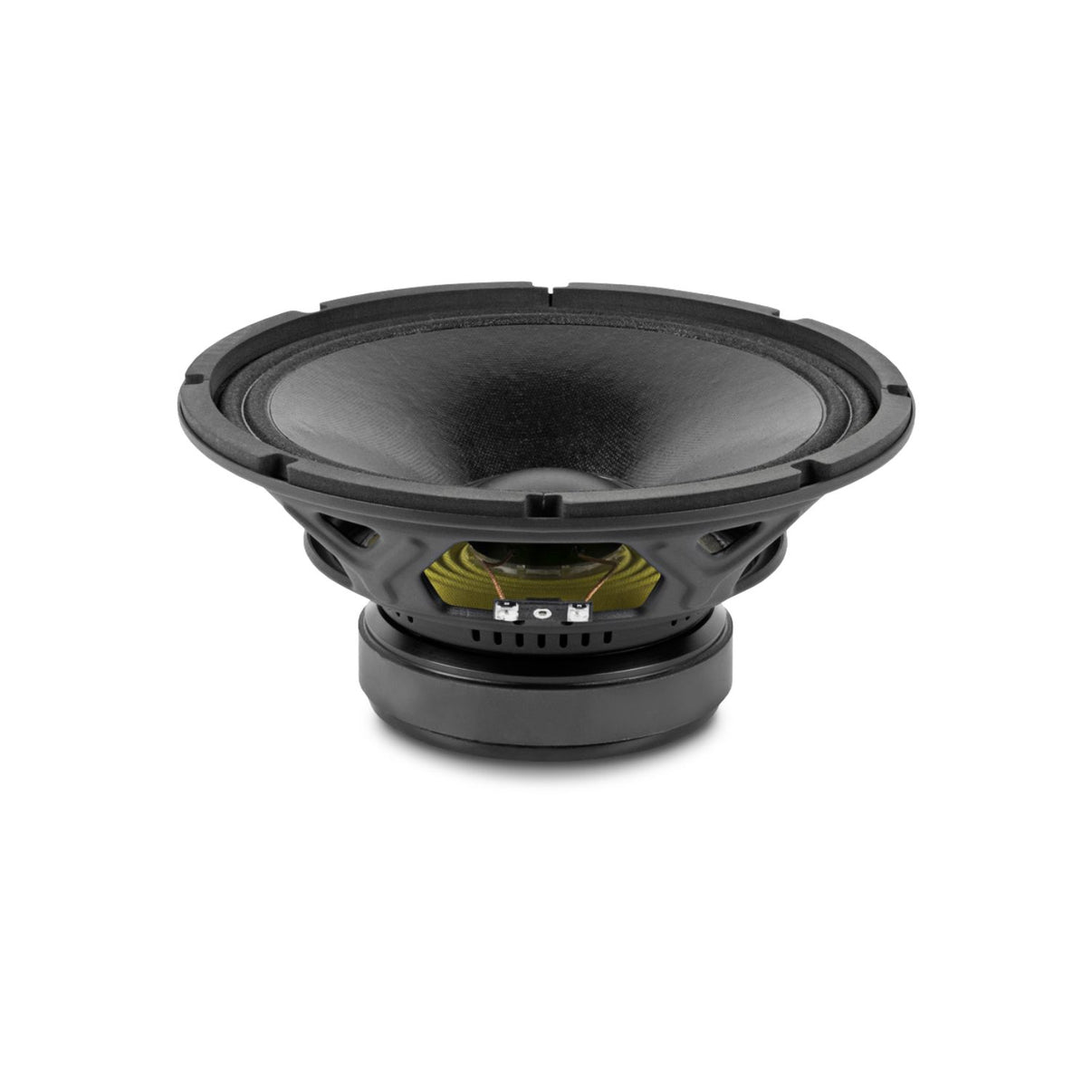

![Beyma 10WRS300 - 8 OHM Loose Speaker](http://www.stationvibration.co.za/cdn/shop/files/SV_10WRS30080HM_Primay_600x.jpg?v=1706619734)
TECHNICAL SPECIFICATIONS
Nominal impedance
8 Ohm
Power capacity
300 W AES
Nominal diameter
250 mm 10 in
Sensitivity
95 dB 1 W/1 m @ ZN
Minimum impedance
7.5 ohm
Frequency range
55-5000 Hz
Program power
600 W
Recommended enclosure volume
15 / 50 l 0.53 / 1.77 ft.³
Voice coil diameter
50.8 mm 2 in
BL factor
13.9 N/A
Moving mass
0.039 kg
Winding length
15 mm
Air gap height
8 mm
Xdamage pp
30 mm
PARAMETERS THIELE & SMALL
Fs
52 Hz
Re
6.1 ohm
Qms
5.5
Qes
0.4
Qts
0.38
Vas
42 l
Cms
242 µm / N
Rms
2.3 kg/s
Efficiency %
1.4
Sd
0.035 m²
Xmax
6 mm
Vd
210 cm³
Le @1 kHz
1 mH
CONSTRUCTION DETAILS
Depth
117 mm 4.6 in
Net weight
3.5 kg 7.72 lb
Total weight
3.9 kg 8.6 lb
Magnet
Ferrit
