Overview
AT-LP60X
Whether you’re just getting into records, rediscovering a record collection long since buried away or simply adding a turntable to complete your system, the AT-LP60X fully automatic belt-drive turntable is an excellent choice. This affordable, easy-to-use turntable plays both 33-1/3 and 45 RPM records and, with its built-in switchable phono preamp, can be connected directly to your home stereo, powered speakers, computer and other components, whether they have a dedicated phono input or not.
Features
- Experience the high-fidelity audio of vinyl
- Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
- Anti-resonance, die-cast aluminum platter

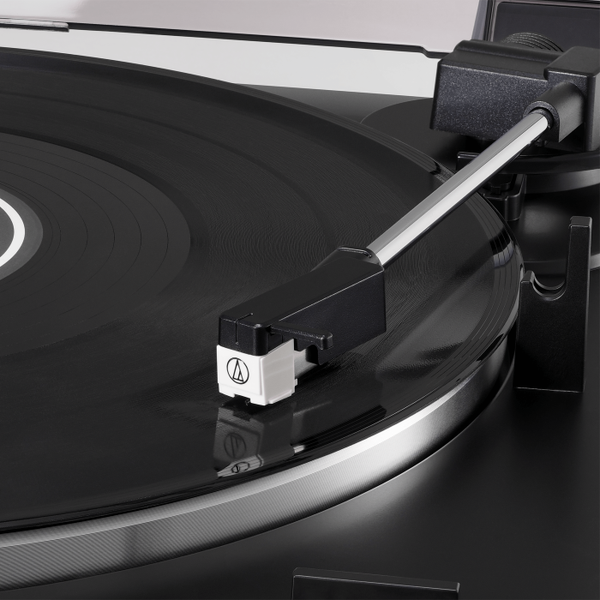

- Redesigned tonearm base and headshell for improved tracking and reduced resonance
- Integral Dual Magnet™ phono cartridge with replaceable diamond stylus (ATN3600LC)
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Built-in switchable phono pre-amplifier for phono- or line-level output
- Includes: detachable RCA output cable (3.5 mm male to dual RCA male), 45 RPM adapter, and removable hinged dust cover
Specifications
| Turntable | |
|---|---|
| Type | Belt drive turntable, fully automatic |
| Motor | DC servo-controlled |
| Drive Method | Belt-drive |
| Speeds | 33-1/3 RPM, 45 RPM |
| Turntable Platter | Aluminum |
| Wow and Flutter | Less than 0.25% (WTD) @ 3 kHz |
| Signal-to-Noise Ratio | >50 dB (DIN-B) |
| Output Level | Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE” 150 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized |
| Power Supply Requirements | 100 to 240 V, 50/60 Hz, 0.6 A Max. |
| Dimensions | 359.5 mm (14.15") W x 97.5 mm (3.84") H x 373.3 mm (14.70") D |
| Weight | 2.6 kg (5.73 lbs) |
| Accessories Included | Dust cover, Felt mat, Platter (with drive belt), 45 RPM adapter, RCA audio cable (approx. 1.2 m (3.9')), AC adapter (approx. 1.5 m (4.9')) |
| AC Adapter | 12 V, 2 A |
| Replacement Stylus | ATN3600LC |
