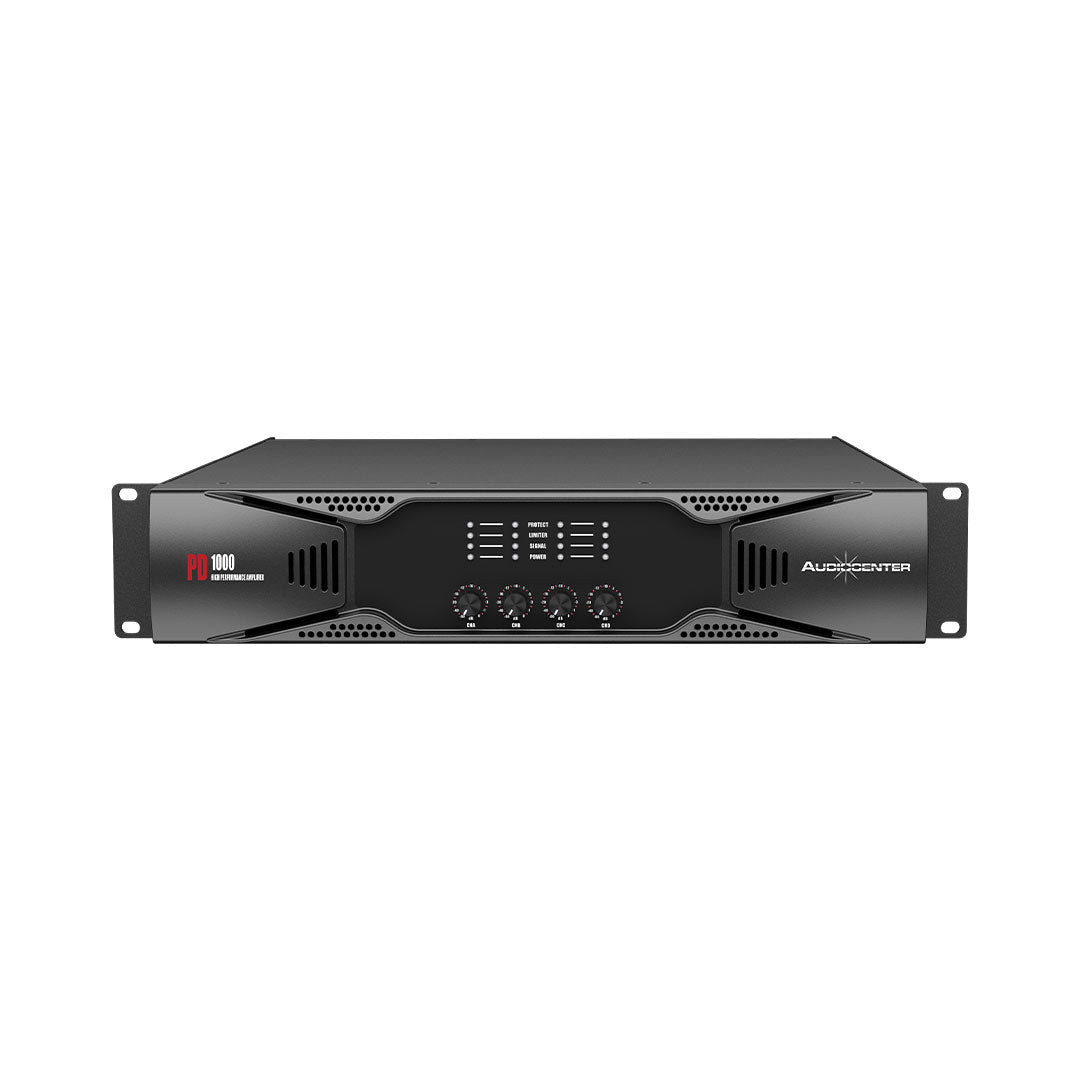

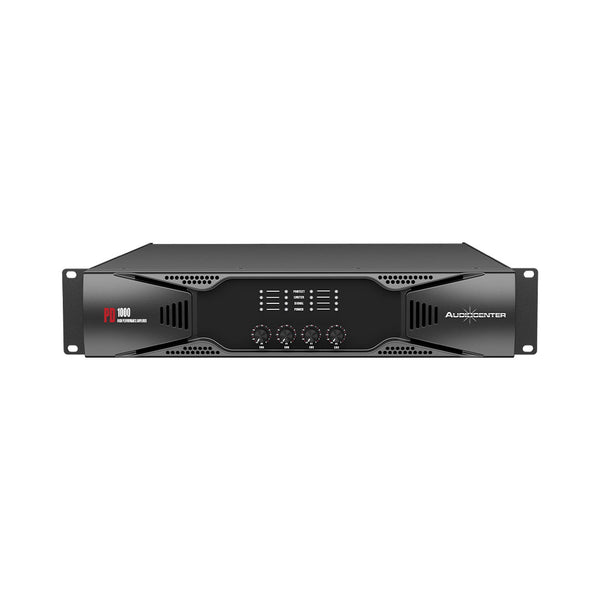

Professional Four-channel Power Amplifier
PD1000 is a professional four-channel power amplifier with high technology, premium sound performance and comprehensive protection system. It is a truly high-quality professional power amplifier.
Overview
PD1000 is a professional four-channel power amplifier with high technology, premium sound performance and comprehensive protection system. It is a truly high-quality professional power amplifier.
PD1000 suitable for professional entertainers with limited budgets but demanding the best performance. It is widely used in bars, nightclubs, multi function halls, museums, religious places, speeches, weddings and other fixed installation and mobile performance venues.
Specifications
|
Output Power(1kHz, THD+N =1%) |
4x 1000W @8Ω stereo 4x 1500W @4Ω stereo 4x 1000W @2Ω stereo 2x 3000W @8Ω bridge 2x 2000W @4Ω bridge |
|
Protection |
DC protection/Short circuit protection/ Smart overheat management/Overheat protection/Output overload protection / Soft startup protection/Limiter protection |
|
Working mode |
Stereo/Parallel/Bridge |
|
Crossover(High Pass/Low Pass) |
120Hz,-3dB |
|

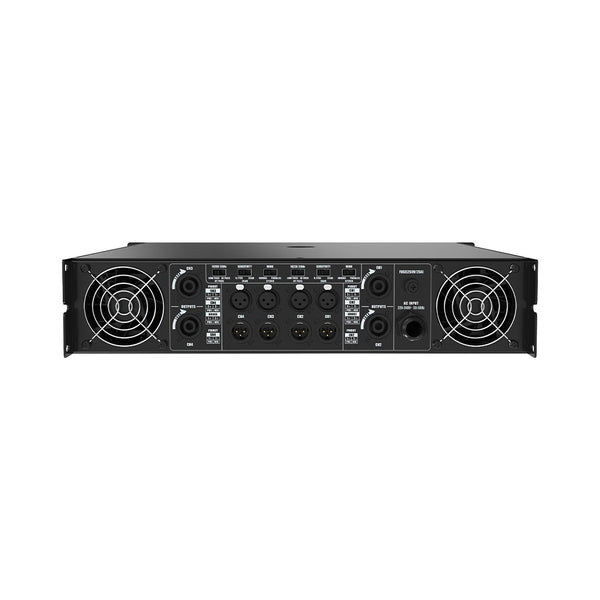

Input Connectors |
Male XLR & Female XLR |
|
Output Connectors |
Speakon 4Pin |
|
Input Impedance |
≥20kΩ(Balanced),≥10kΩ(Unbalanced) |
|
Maximum input voltage |
≥20dBu |
|
Sensitivity |
0.775V / 36dB / 32dB |
|
Frequency Response(1W 8Ω stereo) |
20Hz-20kHz(± 1dB) |
|
Crosstalk (1kHz, Rated power 8Ω A weighted) |
≥60dB |
|
S/N Ratio(Rated power 8Ω, A weighted) |
≥100dB |
|
Damping Factor (1kHz & 8Ω) |
≥400 |
|
Intermodulation Distortion(60Hz:7kHz=4:1,half power) |
≤0.1% |
|
THD+N (1kHz,8Ω half power A weighted) |
≤0.05% |
|
Output Circuitry |
Class H |
|
Power Supply |
100-130V~/220-240V~(±10%,50/60Hz) |
|
Power Consumption(1/8 output power) |
1680W |
|
Rack Space |
2U |
|
Cooling |
Back to front venting, mandatory cooling |
|
Dimension (W×H×D) |
483×88×457mm |
|
Net Weight |
27.0 kg |
