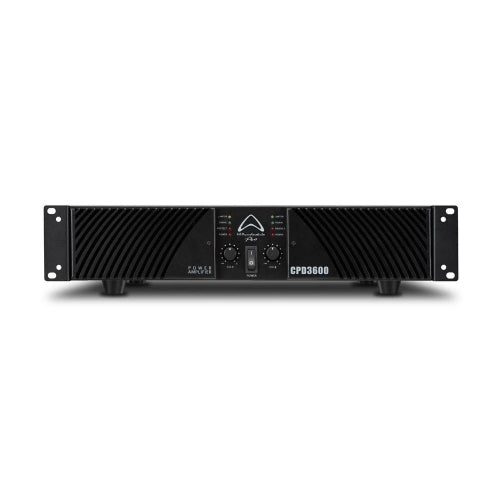

CPD3600

The CPD3600 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.

For using in stereo the amplifier delivers 870W RMS per channel at 8 Ohms and 1300W RMS per channel at 4 Ohms; a suitable power for medium to large sized complete PA systems for mobile and fixed installation. In bridged mode at 4 Ohms the amplifier generates 3600W RMS. This huge power means the amplifier can also integrate itself with larger touring rigs and installs where long throw, extremely high power audio is needed.

Key Features

  • 8 Ohms x 2: 870W RMS
  • 4 Ohms x 2: 1300W RMS
  • 8 Ohms Bridged: 2600W RMS
  • 4 Ohms Bridged: 3600W RMS
  • Class H Technology
  • Status and clip LEDs
  • Thermal, overcurrent, DC and output short protect circuitry
  • 2 x Speakon outputs
  • 2 x XLR outputs to link other audio equipment
  • 2 x XLR inputs
  • Peak and protect LEDs
  • Built-in switchable limiter
  • Continuously variable speed fan
  • Suitable for touring, rental and installation
Technology
Working in stereo, parallel and bridged modes CPD3600 is built for a multitude of sound system formations. Brand new class H topology has resulted in a dynamic, high headroom amp made for propelling your loudspeakers through thick and thin with complete clarity.
Precision Control
Large rotary dials accurately adjust gain levels, and you will know when to do so from the clear and simple front panel. A 4 segment led formation displays shows vital power status, level, limit and protect information, keeping the sound engineer in the know.
Easy Cleaning
Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in.



Dirty cooling fans reduce efficiency and can lead to overheating.



Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.



This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments.

SPECIFICATIONS

Stereo Power Output
8 Ohms x 2 870W RMS
4 Ohms x 2 1300W RMS
Bridged Mono Output
8 Ohms 2590W RMS
4 Ohms 3600W RMS
Inputs 2 x XLR
Outputs 2 x XLR, 2 x Speakon
Frequency Response 20Hz - 30KHz
Topology Class H
Sensitivity 0dBu (0.775Vrms)
Input Impedance 20K Ohms
Maximum Input Level 22dBu (9.7Vrms)
Slew Rate >40V / us
Crosstalk <-70dB
Signal to Noise >100dB
Protection Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
Display 4 segment LED
Cooling Variable Speed Fan
Dimensions 88 x 483 x 451mm
Net Weight 24kg / 52.91lbs
Gross Weight 26kg / 57.32lbs
