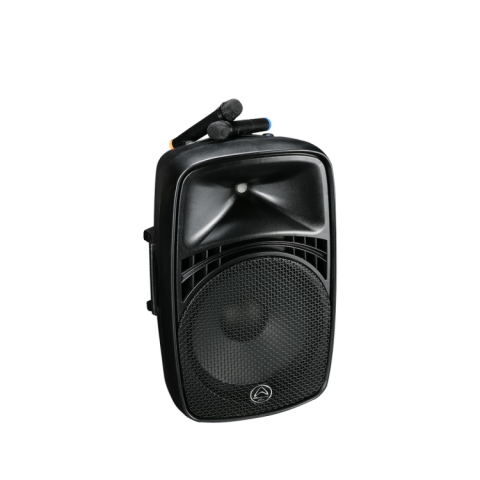

Really portable PA
The EZ-12A has been developed to answer a specific need for entertainers, presenters and performers who demand high powered PA systems but in any location. Powered by an internal battery or by a versatile 100v-240v mains input, EZ-12A can go anywhere. With an internal MP3 player, wireless mic input, Bluetooth connectivity and even standard analogue connectors, EZ-12A is ready to accept inputs from anywhere.
The electronics of EZ-12A are versatile and comprehensive (it even comes with a handy IR remote control!), however the transducers and amplification components are also of the highest quality.
EZ-12A is capable of delivering up to 115dB Max SPL @1 meter which ensures that music, speech or both are clearly heard wherever the EZ is used.
Key Features
|
|

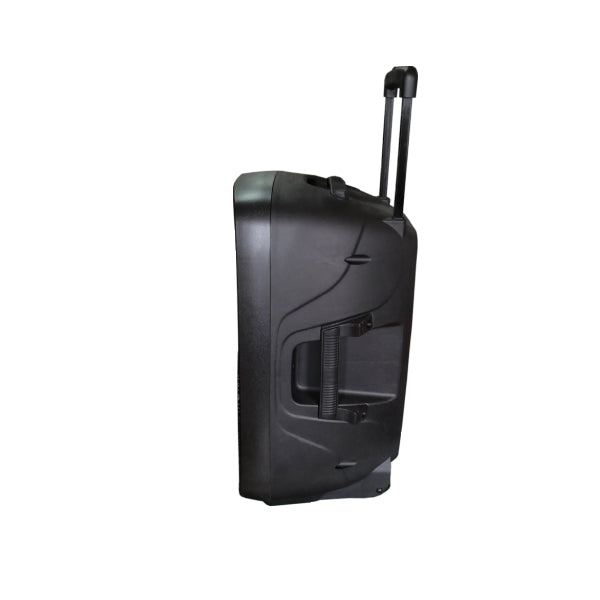

The extendable handle slides away inside the cabinet body when not in use but pulls out quickly and easy when its time to go!
Two durable wheels on the base also makes transportation painless and straight forward.
The MP3 section plays audio files from either USB drive or TF card and has a clear LED display.
The simple controls allow inexperienced users to put on a professional show!
This means that the system can be up and running in seconds - without the need of any additional hardware.
There are 2 different models of EZ-12A. Choose the one whose frequency bands are available in your country.
600-606MHz OR 863-865MHz

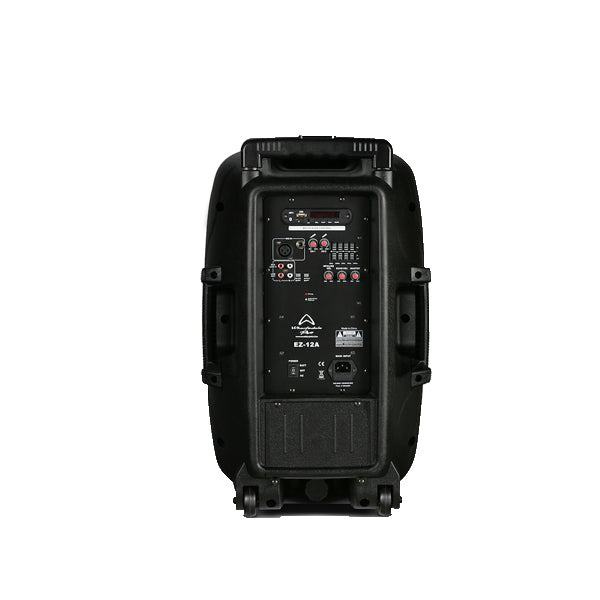

An optional wired mic can be connected to the XLR or jack input. The volume of this is controlled by the 'Chan 1' knob.
The 2 included wireless mics are controlled by the 'Chan 2' knob.
Mix in extra ECHO or the input from the internal MP3 player to create the perfect mix.
The 5-band graphic EQ then lets you tailor the sound to suit your acoustic environment.
Start, stop and skip tracks on the MP3 player wirelessly.
SPECIFICATIONS
Power | EZ-12A |
System type | Active portable PA |
Frequency Range | 65Hz - 18kHz |
Impedance | 4Ω |
LF Transducer size | 12" |
LF Transducer voice coil | 1" |
HF Transducer | 1" |
Dispersion H x V | 90° x 50° |
Max SPL @ 1m | 115dB |
Mic input | XLR and 1/4” jack |
Line input | L/R RCA connectors |
Line output | L/R RCA connectors |
5-band graphic EQ | 63Hz / 80Hz / 480Hz / 3kHz / 10kHz +/-12dB |
Wireless mic frequency | 2 models available (600 – 606 MHz or 863 – 865 MHz) |
Wireless mics | 2 handheld mics included |
Wireless mic range | 40m (theoretical value) |
Echo effect | Yes |
MP3 player | Yes (USB/TF) |
Bluetooth range | 10m |
Power (peak) watts | 100w |
Battery power | Up to 5 hours. (6 hours charge time) |
Amplifier THD | 0.1% 20Hz-20kHz |
Amplifier Frequency response | 20Hz - 20kHz +/-1dB |
Input voltage | 100v-240v 50Hz/60Hz |
Dimensions | 420 x 350 x 640mm |
Net weight | 10.5kg |
Gross weight | 12.5kg |
