32-Bit Float Technology in Our Smallest, Lightest Recorder Ever.
Built for Big Things
For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.
Don't Be Fooled by its Size
The F2 is incredibly small, but its audio quality will amaze you.
F2 Features
Light and compact audio recorder
32-Bit Float recording for full dynamic range and clip free recording
No gain adjustment necessary
Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files
Rec Hold function to avoid accidental operation of buttons
1/8" Mic In mini phone jack with Plug-in power (2.5V)
Stereo ⅛" Phone/Line Output jack with dedicated volume control
80 Hz low cut filter
High precision internal clock to avoid audio and video syncing issues
Wireless timecode synchronization (F2-BT model only)*
Records directly to micro SD, SDHC, and SDXC cards up to 1 TB
USB-C for connection to F2 Editor for settings
Built-in Bluetooth for connection to the F2 Control app for settings adjustment and remote transport control (F2-BT model only)
Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries
*F2-BT connection to UltraSync BLUE device by Timecode Systems is required.

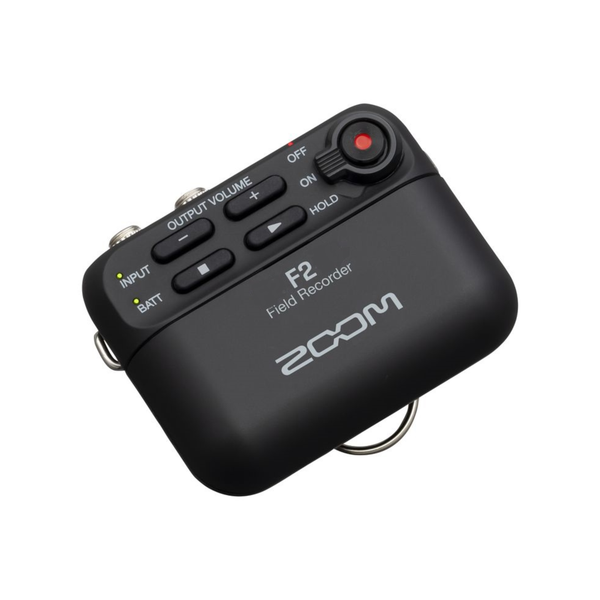

INPUT LED
This lights according to the input level through the INPUT jack.
BATT LED
The color of the light changes according to the remaining battery charge.
OUTPUT VOLUME −/+ CONTROL
Use these to adjust the headphone output volume.
REC/PLAY LED
This lights during recording and playback.
Power/HOLD switch
Use this to turn the power ON/OFF and to disable button operation.
REC button
Use this to start/stop recording.
Transport Controls
Use to play and stop recorded files.

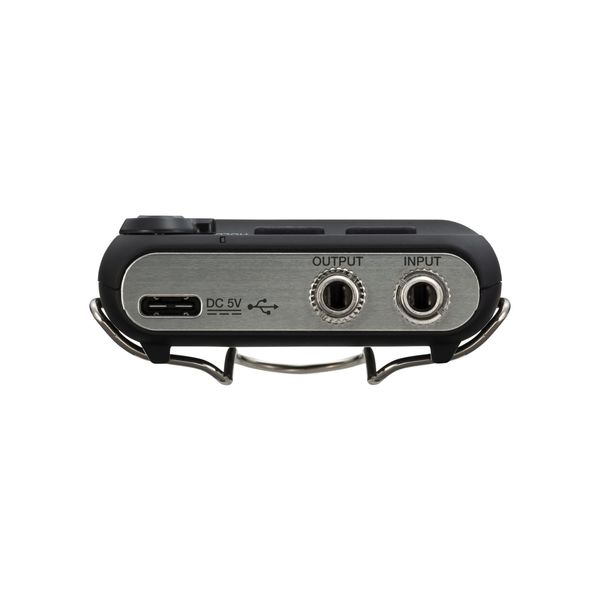

DC 5V (USB Type-C) connector
Connect to your computer with a USB-C cable to transfer files and adjust settings using the F2 Editor software. This port can also be used to provide power to the F2/F2-BT.
OUTPUT jack
Connect headphones here.
INPUT jack
Connect a lavalier mic here.

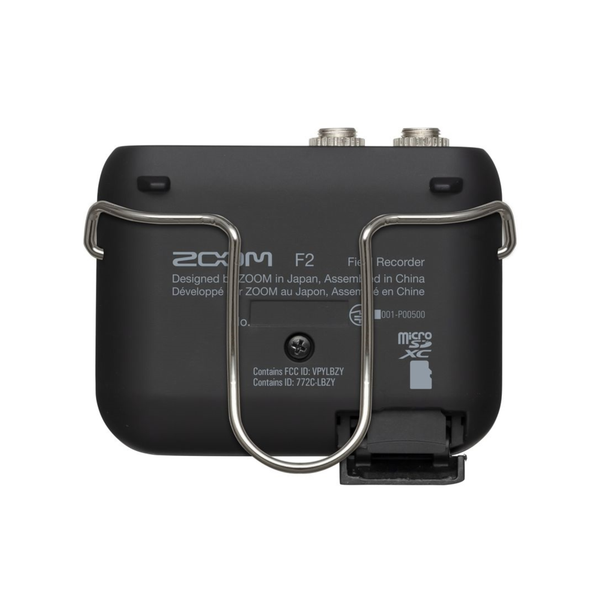

Belt clip
microSD card slot
Insert a microSDXC card up to 1 TB
Audio on Autopilot
The F2 features 32-bit float recording technology, allowing you to record the loudest audio signals without worrying about clipping. It will also record the quietest signals in beautiful detail. And the best part is you don’t have to worry about setting the gain. Just plug in the lav and hit record.
Lock ‘n Lav
Screw-lock connectors keep your lav plugged-in securely no matter the situation.
The F2 Editor
The F2 Editor for PC and Mac allows you to adjust settings, format SD cards and more. Simply connect your F2 or F2-BT via a USB cable and launch the editor. The USB connection also makes it easy to transfer files to your computer. See the F2 Editor features

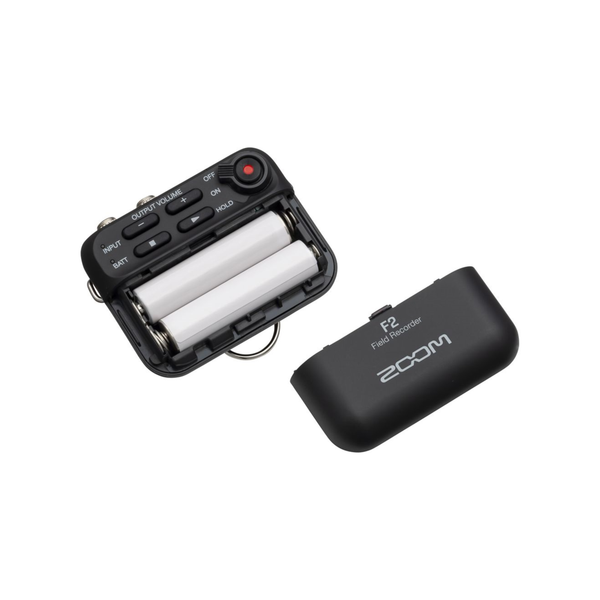

Power
The F2 can record up to 15 hours (14 hours on the F2-BT) with two AAA batteries.
Storage
Record on microSD, microSDHC, and microSDXC cards up to 1 TB.

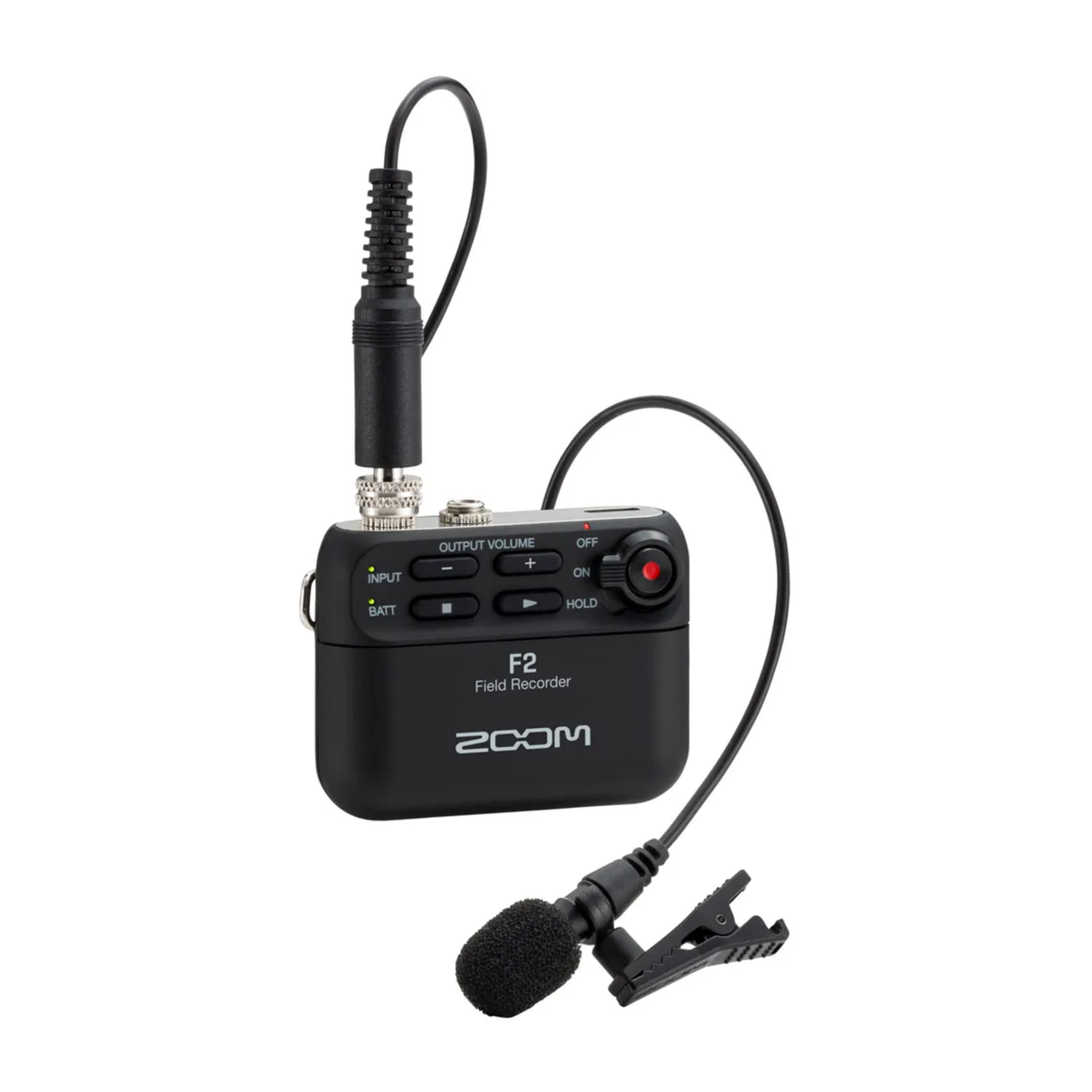

Lavalier Included

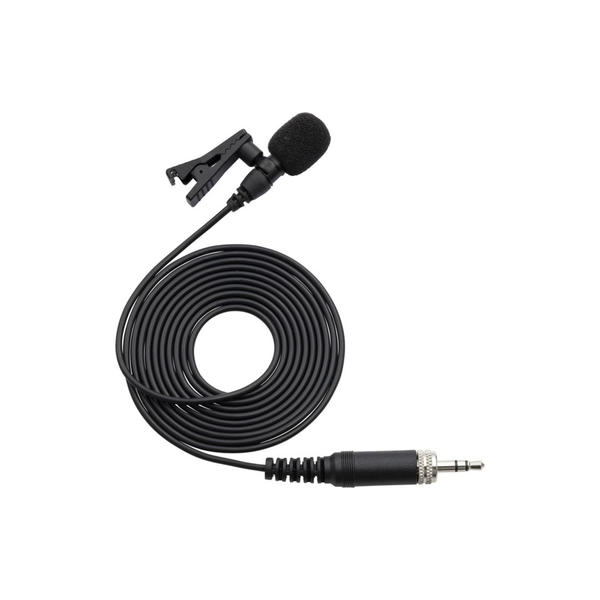

The LMF-2 omnidirectional lavalier microphone has a low-profiled design, captures high-quality audio, and includes a windscreen and lapel mic clip.
Recording Formats
The F2 Field Recorder gives you the option to choose the recording format that works best for your projects. Choose from 44.1 kHz/32-bit float or 48 kHz/32-bit float mono WAV files.

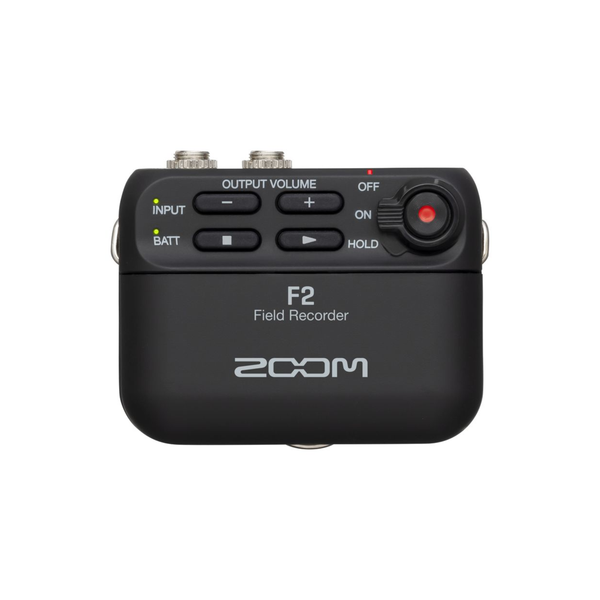

Tour the F2
Specs
F2/F2-BT
INPUT
Connector: 3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)
Input gain: None (dual AD conversion system)
Input impedance: 2 kΩ or more
Maximum input level: −5.5 dBu
OUTPUT
Connector: 3.5 mm stereo mini (with screw lock)
Maximum output level: 20 mW + 20 mW (into 32Ω load)
RECORDING MEDIA
Cards compatible with microSD/microSDHC/microSDXC specifications (Class 4 or higher, 1 TB maximum)
RECORDING FORMAT
WAV: 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported
USB
USB Type-C
Mass storage operation USB 2.0 High Speed
PC app operation USB 2.0 High Speed
POWER
2 AAA batteries (alkaline, lithium or rechargeable NiMH batteries) AC adapter (ZOOM AD-17): DC 5 V/1 A
MISCELLANEOUS
Bluetooth: Bluetooth Ver4.2 (F2-BT only)
Continuous recording time when using lavalier mic (48kHz/32-bit float): Alkaline batteries: about 14 hours
NiMH batteries (750 mAh): about 10 hours Lithium batteries: about 18 hours
• The above values are approximate.
External dimensions: 57.5 mm (W) × 46.4 mm (H) × 22.4 mm (D)
Weight (main unit only): 32 g
LMF-2
LAVALIER MIC
Connector: 3.5 mm stereo mini (with screw lock)
Directionality: Omnidirectional
Sensitivity: –32 dB/Pa at 1 kHz
Maximum sound pressure input: 115 dB SPL
Cable length: 160 cm
