THX® CERTIFIED SELECTTM THEATER-REFERENCE SOUND
THX Certified Select guarantees the same reference volume level of a commercial theater in rooms where the viewing position is about 10–12 ft. from the screen. To gain certification for reference sound within strict THX® sound quality parameters, receivers must pass 2,000 bench-tests in 75 categories covering 14,000 data points.
DOLBY ATMOS® AND DTS:X® – SETTING SOUND FREE
Dolby Atmos® and DTS:X® formats allow engineers to map sound anywhere in 3D space, effects moving from speaker to speaker all around the room and wrapping your audience in the latest films and games. You can also enjoy your 3D speaker layout with classic titles. Dolby Surround® and DTS® Neural:X find overhead cues in legacy soundtracks and upmix for awesome spatial realism.
DOLBY ATMOS® HEIGHT VIRTUALIZER
When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
DYNAMIC AUDIO AMPLIFICATION
Refined over 70 years to deliver emotion in high fidelity, DAA features a custom High-Current Low-Noise Power Transformer, customized capacitors, and discrete amp output stages. Unique topology prevents phase-shift while high current improves speaker control for true dynamic speed. Driving 4-ohm loads through all channels, DAA has power to move.
Features
| # Channels |
7.2 |
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) |
100 Watts, 0.08% THD |
| Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven) |
210 Watts, 10% THD |
| Dynamic Audio Amplification |
✓ (for Clear and Realistic Sound) |
| H.C.P.S. (High Current Power Supply) |
✓ |
| Non-Phase Shift Amplifier |
✓ |
| THX Certified |
✓ |
| Continuous 6 Ohms Rated |
✓ |
| Certified 4 Ohms Performance |
✓ |
| Discrete Output Stage Circuitry |
✓ |
| Amplifier Design |
Linear Class A/B |
| Bi-amp CapabIndependent Block Construction (Amp/Preprocessor)ility For Front |
- |
| Bi-amp Capability For Front |
✓ |
| SMART AV Receiver |
Wireless multi-room audio platforms, streaming service integration, and remote app control |
| Works with Sonos certified for the Sonos Home Sound System |
✓ |
| Chromecast built-in and voice control with the Google Assistant |
✓ |
| AirPlay 2 multi-room audio and voice control with Siri |
✓ |
| DTS Play-Fi® |
Multi-room audio via Onkyo Music Control App |
| FlareConnect™ |
Multi-zone audio with compatible components |
| Quad-core SoC processing evolves network functions and supports high-speed 802.11ac (2x2 MIMO) Wi-Fi specification |
✓ |
| Hi-Res Audio playback via network |
DSD 11.2 MHz/5.6 MHz/ 2.8 MHz; FLAC, WAV [RIFF], AIFF, and ALAC to 192 kHz/24-bit |
| Dolby Atmos |
✓ (5.2.2) |
| Dolby Atmos Height Virtualizer |
✓ (Enabled with a future firmware update) |
| 32-Bit Digital Signal Processing Engine |
✓ |
| Dolby Decoder |
Dolby Atmos, Dolby True HD |
| DTS:X |
✓ (5.2.2) |
| DTS Virtual:X |
✓ (Enabled with a future firmware update) |
| DTS Decoder |
DTS: X, DTS: Neural: X, DTS-HD Master Audio |
| ONKYO GAME Surround Modes |
✓ (Rock, Sports, Action, RPG) |
| VLSC for Noiseless Audio Processing |
✓ (Front L/R Channels) |
| THX Processing Mode |
✓ |
| CinemaFILTER |
- |
| AccuEQ Room Calibration |
✓(w/ AccuReflex) |
| Phase-Matching Bass Boost |
- |
| Direct/Pure Mode |
✓/- |
| Pure Direct Analog Path Mode |
- |
| Advanced Music Optimizer |
✓ |
| 192K/24 Bit DACs |
- |

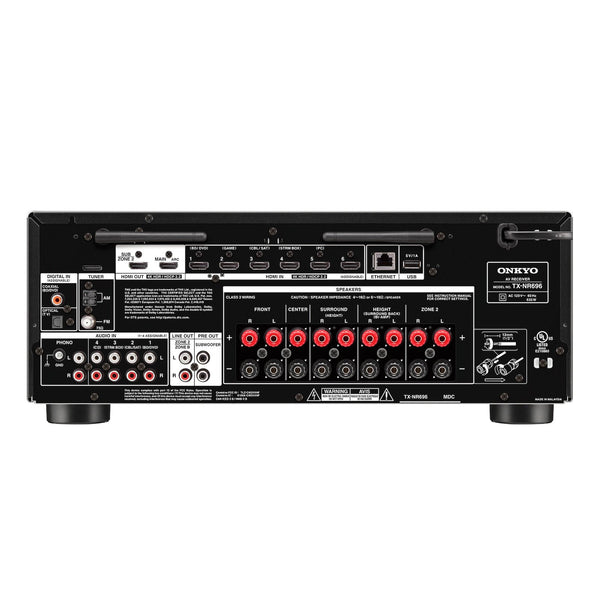

| Analog Audio IN |
4 |
| Phono Input |
✓ |
| Digital Audio IN (OPT/COAX) |
1 / 1 |
| Composite Video I/O |
- |
| Component Video I/O |
- |

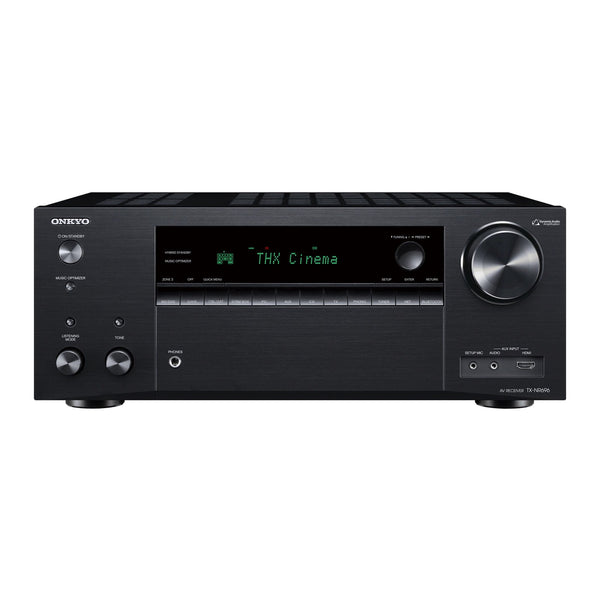

| Front Panel HDMI |
✓ |
| Front-Panel A/V |
1 (Analog) |
| USB Input |
✓ (Rear) |
| HDMI I/O |
7(1 front)/ 2 (Main, Sub/Zone 2) |
| HDMI 4K/60 Hz- Capable HDMI Terminals |
✓ |
| HDCP 2.3 Copy-Protection Compatibility |
✓ |
| HDMI Support for High Dynamic Range |
✓(HDR10 and Dolby Vision) |
| HDMI Support for Deep Color, x.v.Color, LipSync |
✓ |
| HDMI Support for 3D, Audio Return Channel and CEC |
✓ |
| HDMI Support for DVD-Audio, SACD, Multichannel PCM |
✓ |
| Analog To HDMI Upconversion |
- |
| BT.2020 Support |
✓ |
| 1080p to 4K Upscaling |
✓ |
| 4K Passthrough |
✓ |
| Analog Pre-Outs |
Subwoofer (x2) |
| Speaker A/+B |
- |
| Powered Zone 2 |
✓ |
| Powered Zone 3 |
- |
| Zone 2/ Zone B Line Out |
✓ |
| Zone 2 Video Out |
- |
| Zone 2 Digital to Analog Audio Conversion |
✓ (Net/SPDIF/Bluetooth, HDMI Inputs 1-3) |
| Zone 3 Line Out |
- |
| Whole House Mode |
- |
| FlareConnect Multi-room Audio |
✓ |
| Airplay & Airplay 2 |
✓ |
| Chromecast built-in |
✓ |
| Works with Google Assistant |
✓ |
| Supports Onkyo Remote App |
✓ |
| Internet Radio Capable |
✓ |
| Spotify Connect Support |
✓ |
| Tidal |
✓ |
| Amazon Music |
✓ |
| Streaming Audio From PC / Network |
✓ |
| Hi-Res Streaming Audio Formats |
✓ (DSD 11.2 MHz/5.6 MHz/2.8 MHz*, 192 kHz/24-bit FLAC, WAV, AIFF, and ALAC) *Converted to PCM |
| Streaming Audio From USB memory |
✓ |
| Wireless Network |
5GHz(11ac/a/n), 2.4GHz(11b/g/n) |
| Bluetooth |
✓ (Version 4.2, Profile: A2DP 1.2, AVRCP 1.3) |
| RS-232 |
- |
| IR Input |
- |
| IR Output |
- |
| Ethernet |
✓ |
| ONKYO-RI System Control |
- |
| RIHD (Remote Interactive Over HDMI) |
- |
| 12V Trigger |
- |
| Pre-Programmed Remote |
- |
| Hybrid Standby Function |
✓ |
| Smart Grid-Ready |
✓ |
| Auto Speaker Calibration W/Mic. |
AccuEQ w/ AccuReflex |
| OSD Out |
✓ |
| Solid Aluminum Front |
- |
| Transparent High-Grade Speaker Terminals |
- |
| Detachable AC Cord |
- |
| Warranty |
2 YEARS |
Specs
| All Channels |
100 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC) 210 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven) |
| Dynamic Power |
240 W (3 Ohms, Front) 210 W (4 Ohms, Front) 120 W (8 Ohms, Front) |
| THD+N (Total Harmonic Distortion + Noise) |
0.08% (20 Hz–20 kHz, Half Power) |
| Input Sensitivity and Impedance |
200 mV / 47k Ohms (Line/Unbalanced) 3.5 mV/47k Ohms (Phono/MM) |
| Rated RCA Output Level and Impedance |
200 mV / 2.3k Ohms (Zone B/ Zone 2 Line Out) 1 V / 470 Ohms (Subwoofer Pre Out) |
| Phono Overload |
70 mV (MM, 1 kHz, 0.5%) |
| Frequency Response |
10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) |
| Tone Control |
±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio |
106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) |
| Speaker Impedance |
4 Ohms–16 Ohms |
| Video |
1.0 Vp–p/75 Ohms (Component Y) 0.7 Vp–p/75 Ohms (Component PB/CB, PR/CR) 1.0 Vp–p/75 Ohms (Composite) |
| Component Video Frequency Response |
+0 dB, -3 dB |
| FM |
87.5 MHz–107.9 MHz |
| AM |
530 kHz–1,710 kHz |
| FM/AM Preset Memory |
40 stations |
| Power Supply |
AC 120 V~, 60 Hz |
| Power Consumption |
635W |
| No-Sound Power Consumption |
65W |
| Standby Power Consumption |
0.15 W |
| Dimensions (W x H x D) |
17 1/8" x 6 13/16" x 14 15/16" (435 x 173.5 x 379.5 mm) |
| Weight |
22 lbs (10 kg) |
