Rated output:
Bring movies to life in smaller spaces with amazing 8K picture quality and true surrount sound. Enjoy all your favourite entertainment with 5.2 channel surround sound and wireless music streaming via Bluetooth.

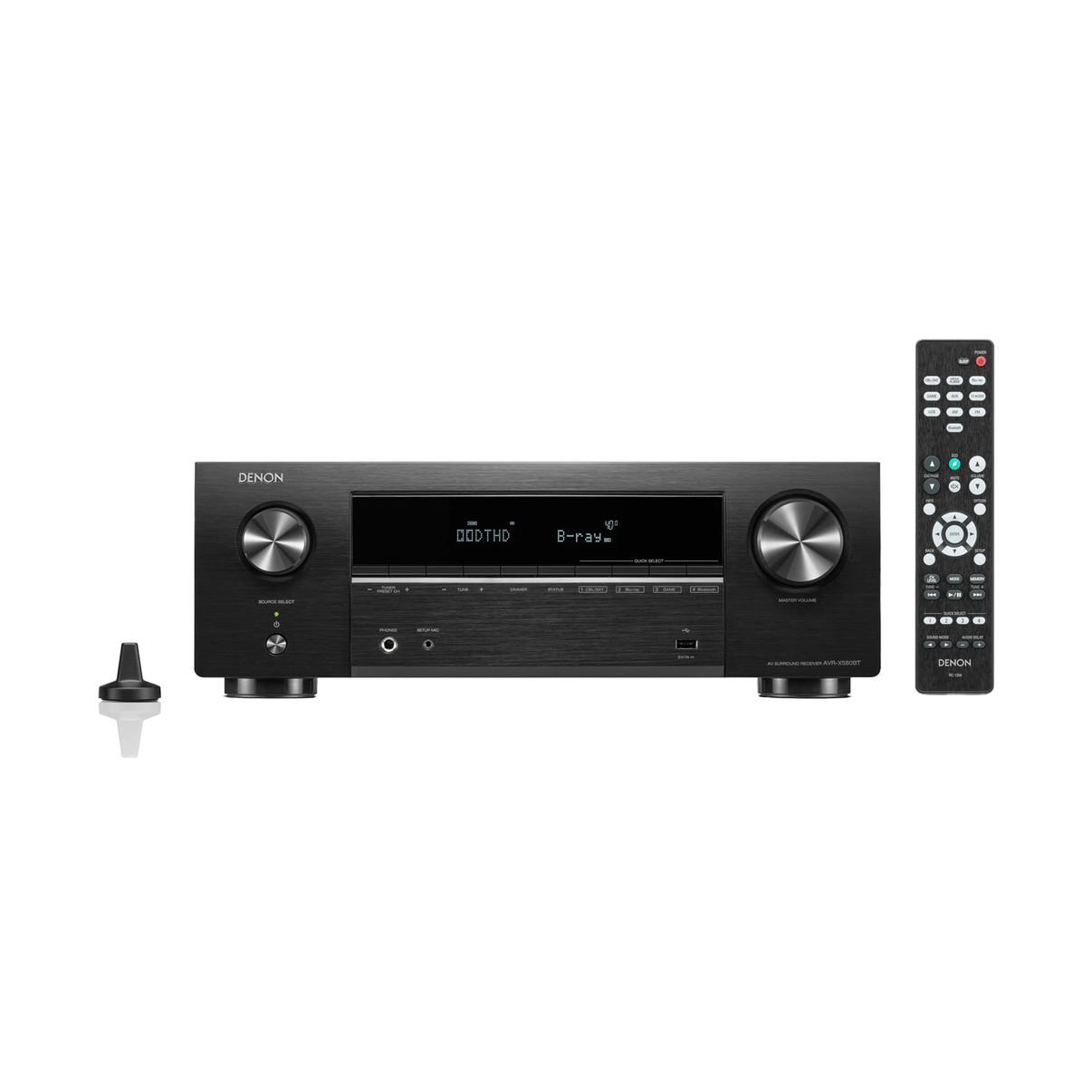

Features – AVR-X580BT
Welcome to 8K Home Theater
Overview
Bring movies to life in smaller spaces with amazing 8K picture quality and true surrount sound. Enjoy all your favourite entertainment with 5.2 channel surround sound and wireless music streaming via Bluetooth.
- Key Features
-
Powerful, discreet 5-channel amplifier
With up to 130W per channel (at 6 ohms, 1kHz, THD 1%), there is enough power to drive high-quality sound from any speaker.
-
-
-
Dolby TrueHD
High-fidelity lossless DolbyTrueHD and Dolby Digital, DolbyDigital Plus signal decoder, andDolby Pro Logic II upmixer for 2-channel audio signals to createa full 5.1 surround soundexperience.
DTS Surround Technology
High-fidelity lossless DTS-HD and DTS Surround, DTS 96/24signal decoding, along with DTSNeo 6 upmixer for 2-channelaudio signals to create a full 5.1surround sound experience.
HDMI Connectivity with ARC/eARC
Supports the latest technology on all HDMI inputs and the output. ARC (Audio Return Channel) or eARC (Enhanced Audio Return Channel) makes playing TV audio through your AV receiver simple with just a single HDMI connection. eARC provides HD and 3D audiotransmission such as Dolby TrueHD, DTS HD Master Audio, and Dolby Atmos while ARC is limited to conventional 5.1ch audio formats or PCM.
8K / HDCP 2.3
Enjoy pristine picture quality onyour 8K TV or projector.8K/60Hz pass-through and 8Kupscaling on 1080p or 4Kcontent is supported on all fourHDMI inputs and one output.Supports HDCP 2.3, the latestcopy protection standard, forpeace of mind when streamingcopy protected content.
Brilliant color from HDR 10+
Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through. HLG offers HDR technology overbroadcast content. Both Dynamic HDR and HDR10+ use dynamic metadata to optimize shadows and highlights as screens change.
Dolby Vision
Dolby Vision is a stunning HDR imaging technology that brings extraordinary color, contrast, and brightness to the screen. Compatible with Dolby Vision so you can enjoy Dolby Vision content from a compatible source device and TV.
Next-generation gaming
Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) for smooth, lagfree gaming experience when connected with the compatible gaming devices.
Wireless music streaming via Bluetooth
Enjoy listening to your favoriteaudio content wirelessly fromyour smart devices.
High-resolution audio via USB input
Discover the incredible fidelity of high-resolution audio tracks and enjoy music as the artist intended. A front USB port supports up to 24bit/192kHz hires audio playback from a USB drive. Supported audio formats are MP3, WMA, WAV, MPEG-4/AAC, FLAC, and ALAC.
Quick Select
Press one of the four QuickSelect buttons on the frontpanel to easily store andretrieve your favorite audiosettings, such as an inputsource, volume level, or soundmode. You can also accessQuick Select buttons on theDenon 500 series remote appdownloaded on your phone.
Denon 500 Series Remote App
This iOS or Android control appallows you to turn the receiver on and off, select an inputsource, adjust volume level, andbrowse music from your phoneor in a USB drive whenconnected to the receiver.
Dual subwoofer outputs
Immerse yourself in evenlydistributed, accurate bass. Twosubwoofer outputs smooth outlow frequencies and providebetter dispersion. No audiblepeaks or dips—just powerful,room-filling bass.
Guided Setup Asisstant on TV
Award-winning Denon Setup Assistant provides simple, clear instructions to get started. Just connect your AV receiver to your TV and follow the instructions on the TV screen to connect your speakers, perform speaker measurements, and connect source devices.
Auto Setup and Room EQ
As part of setup, follow the instructions on your TV to complete speaker setup and measurement using the included microphone. The receiver uses the measurements to optimize sound for the room, bringing the best out of your system. Just sit back and enjoy great sound.
Specifications
Specifications
Audio section
Power amplifier
|
|
Front: |
|
70 W + 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) |
|
|
90 W + 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) |
|
|
Center: |
|
|
70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) |
|
|
90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) |
|
|
Surround: |
|
|
70 W + 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) |
|
|
90 W + 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) |
|
|
Output connectors: |
6 – 16 Ω/ohms |
Analog
|
Input sensitivity/Input impedance: |
200 mV/47 kΩ/kohms |
|
Frequency response: |
10 Hz – 100 kHz — +1, –3 dB (Direct mode) |
|
S/N: |
98 dB (IHF–A weighted, Direct mode) |
Tuner section |
[FM] |
[AM] |
|
|
(Note: μV at 75 Ω/ohms, 0 dBf = 1 x 10 –15 W) |
|
|
Reception frequency range: |
87.5 MHz – 108.0 MHz |
522 kHz – 1611 kHz |
|
Effective sensitivity: |
1.2 μV (12.8 dBf) |
18 μV |
|
50 dB sensitivity: |
MONO ― 2.8 μV (20.2 dBf) |
|
|
S/N ratio: |
MONO ― 70 dB (IHF–A weighted, Direct mode) STEREO ― 67 dB (IHF–A weighted, Direct mode) |
|
|
Distortion: |
MONO ― 0.7 % (1 kHz) STEREO ― 1.0 % (1 kHz) |
Bluetooth section
|
Communications system: |
Bluetooth Version 4.2 |
|
Transmission power: |
0.25 - 10 mW (Class 1) |
|
Maximum communication range: |
Approx. 10 m in line of sight∗ |
|
Frequency band: |
2.4 GHz |
|
Modulation scheme: |
FHSS (Frequency-Hopping Spread Spectrum) |
|
Supported profiles: |
A2DP (Advanced Audio Distribution Profile) 1.3 |
|
AVRCP (Audio Video Remote Control Profile) 1.6 |
|
|
Corresponding codec: |
SBC, AAC |
|
Transmission range (A2DP): |
20 Hz - 20,000 Hz |
The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
General
|
Operating temperature: |
5 °C - 35 °C |
|
Power supply: |
AC 230 V, 50/60 Hz |
|
Power consumption: |
310 W |
|
Power consumption in standby modes: |
